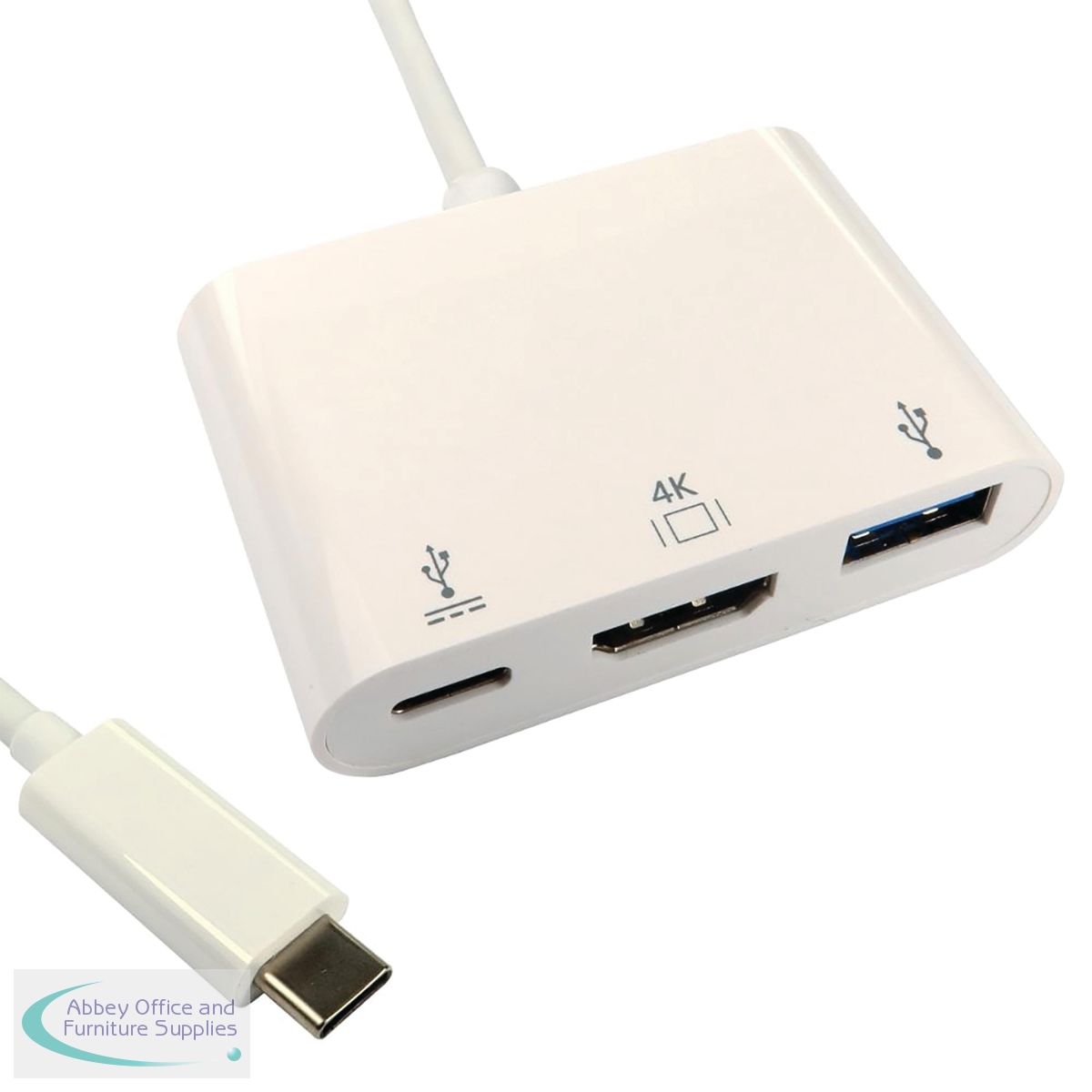

The USB3C-HDMIUSB-WPD4K is a USB-C to USB 3.0, HDMI and USB-C charging port hub. It allows you to connect a USB device to the host computer or another hub. The HDMI port allows you to connect an extra monitor so that you can watch videos or slideshows on the big screen. It supports all USB-C and Thunderbolt host ports that support DP Alt Mode, including DP1.4 and DP1.2.
Key Features
- USB-C (Male): Support DP1.4 Alt mode with 32.4Gbps all lanes, per lane 8.1Gbps (HBR3),5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)
- HDMI (Female) x1: Supports HDMI max 4K/60Hz, 8bit with max 18Gbps Bandwidth, RGB 4:4:4, YCbCr 4:4:4 ,4:2:2 ,4:2:0, 8bit/10bit deep colour, HDR and HDCP v2.2 & v1.4
- USB-A (Female) x1: Support USB 5Gbps data transmission and max 7.5W(5v/1.5A) downstream charging
- USB-C (Female) x1
- Power Delivery 3.0 Port
Product Details
- Pack Weight (kg): 0.035
- Pack Width (mm): 160
- Pack Depth (mm): 200
- Pack Height (mm): 17
|
Product Code: FS687059 Pack Weight: 0.04 kg Pack Dimensions (W×D×H): 160×200×17 mm Manufacturer Product Code: FS687059 Bar Code (EAN): 05018206870599
